2006 CVA Princess 10,764 Gallon Liquid Nitrogen Transport Trailer

2006 CVA Princess 10,764 Gallon Liquid Nitrogen Transport Trailer

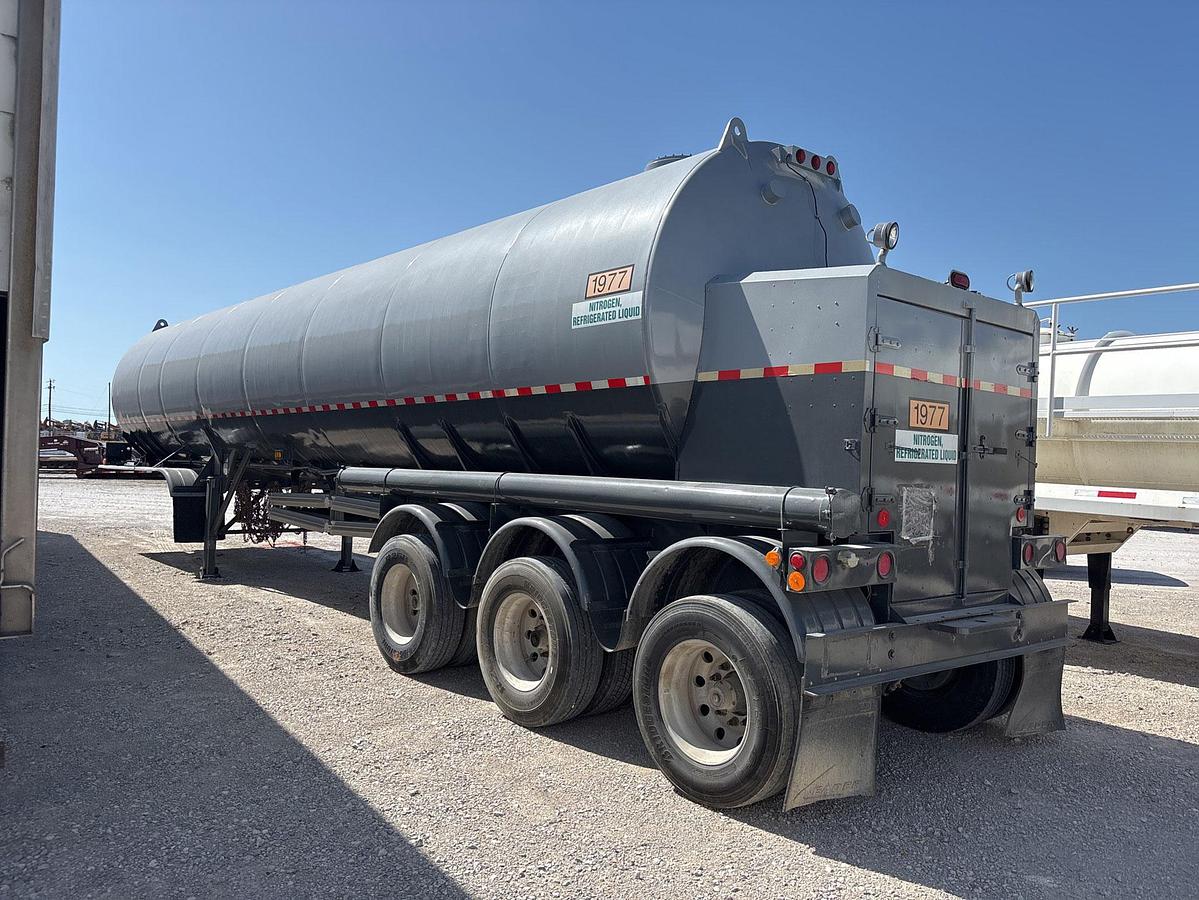

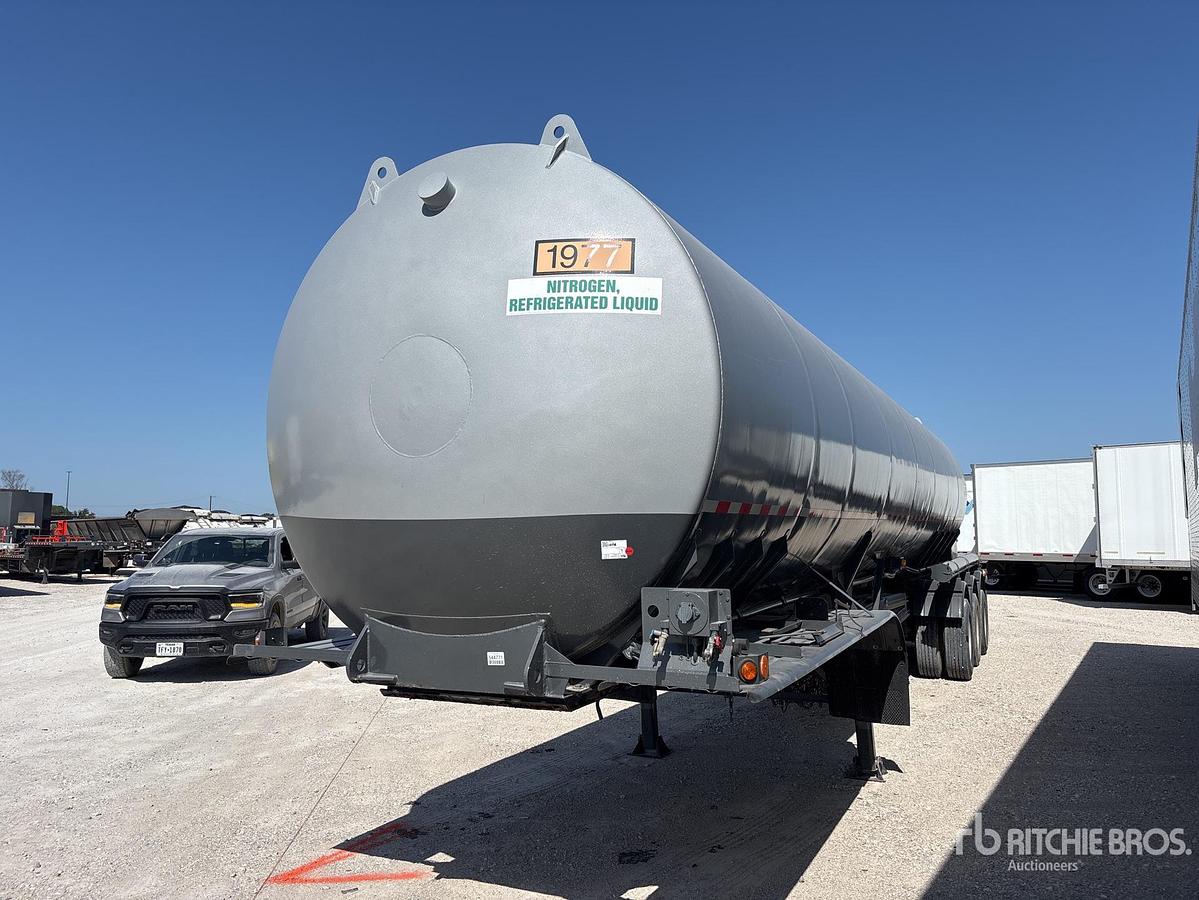

This cryogenic liquid nitrogen semi-trailer was built in September 2006 by Cryogenic Vessel Alternatives (CVA), model Princess. It carries 10,764 gallons (40,746 L) gross in a 304 stainless steel inner vessel built to TC 341 / CGA 341. The vessel has an MAWP of 90 psi and is rated from -320 °F to 100 °F. The tri-axle trailer rides on air suspension with aluminum outer wheels and has a GVWR of 97,234 lb.

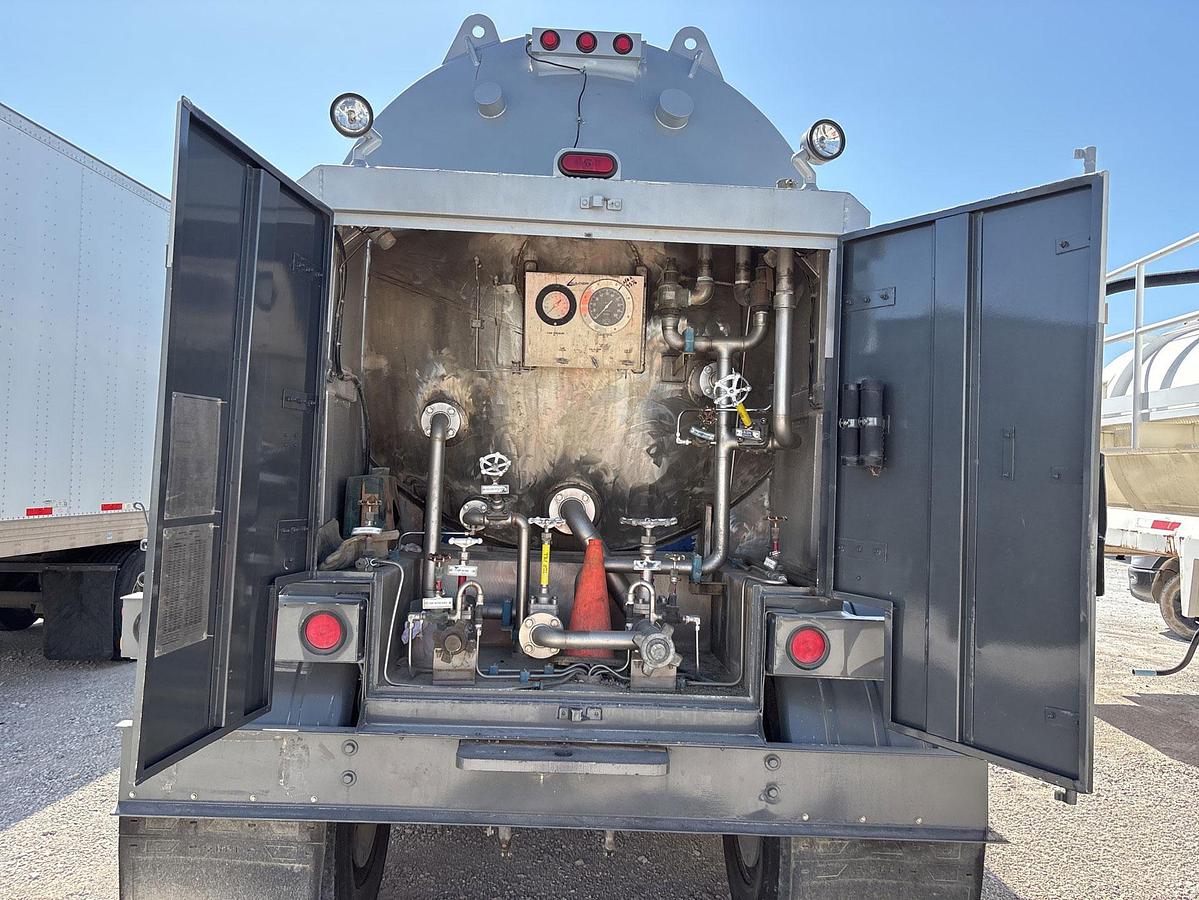

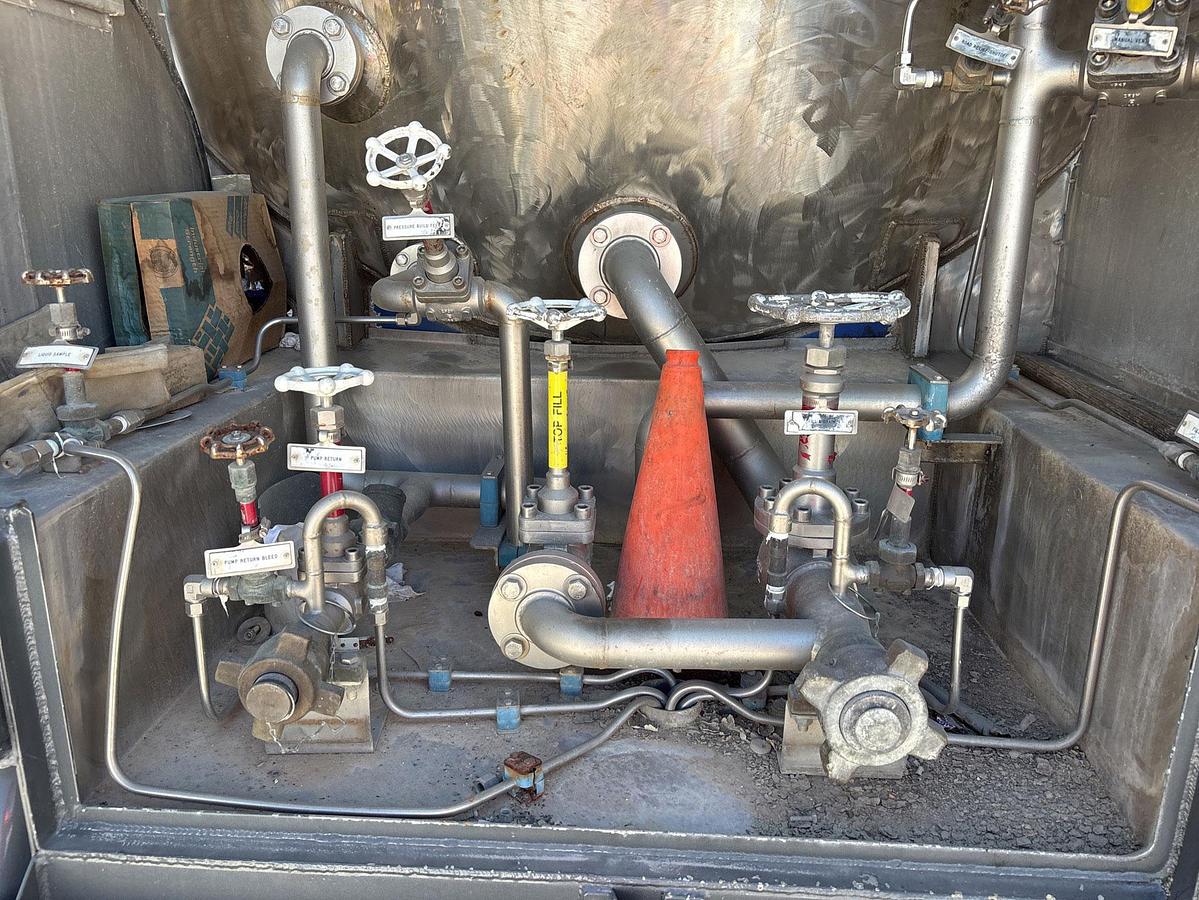

The rear cabinet houses the valves, piping and the pressure and level instruments. A pressure-building vaporizer is mounted under the tank. The insulation is suitable for oxygen service.

Key specs:

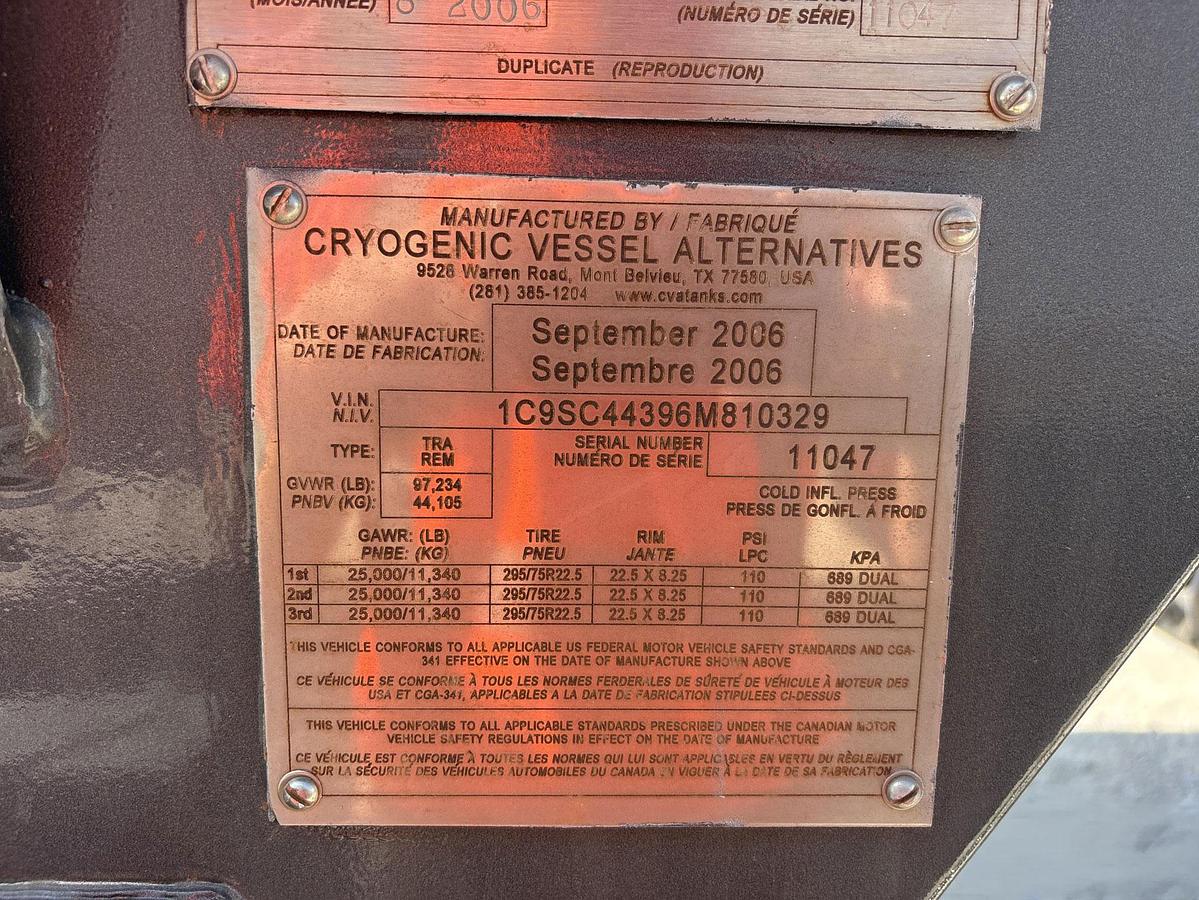

• CVA Princess, built September 2006, serial 11047
• 10,764 gal (40,746 L) gross capacity
• Water capacity 89,646 lb, design payload 69,107 lb
• MAWP 90 psi (620 kPa), test pressure 120 psi
• 304 stainless steel inner shell and heads, ER308L welds
• Minimum thickness: shell 0.250 in, heads 0.266 in
• Tri-axle, 3 x 25,000 lb GAWR, GVWR 97,234 lb (44,105 kg)
• Air suspension, 295/75R22.5 dual tires

The trailer is suited to bulk liquid nitrogen transport and field supply for nitrogen pumping units. It is available for inspection by appointment. Contact VOSO for pricing and export logistics.
